Acoustic panels KRAFT Wood Acoustic

/ Wood-based acoustic panels

Thermal insulation, acoustics, design

KRAFT WoodAcoustic panels are ecological solutions for heat and sound insulation of premises. They are made of environmentally friendly natural materials and have high sound and heat insulation properties. The panels consist of 48% thin wood fibers bonded with Portland cement and marble dust. Mineralization of wood under pressure preserves the mechanical properties of the fibers, but at the same time blocks the process of biological wear and improves the insulating properties of the material.

KRAFT WoodAcoustic acoustic panels can be used in:

  • Shopping centers, shops
  • Bars, restaurants, cafes
  • Cinemas, theaters, assembly halls
  • Conference halls, meeting rooms
  • Educational institutions
  • Sports facilities
  • Production premises, warehouses, hangars
and other places that have high requirements for thermal insulation or acoustics.

All suspended ceilings by KRAFT are certified.

Advantages of Kraft WoodAcoustic panels

Environmental friendliness and safety for health
Environmental friendliness and safety for health
KRAFT WoodAcoustic panels are made of environmentally friendly materials, do not emit carcerogens, formaldehyde, asbestos and other volatile compounds.
Fire safety
Fire safety
Fire safety class Euroclass B-s1, d0 - non-flammable
Mechanical strength
Mechanical strength
The panels have high mechanical strength and impact resistance.
Sound absorption and acoustic comfort
Sound absorption and acoustic comfort
The panels absorb sound waves, turning their energy into heat, which allows you to avoid annoying echoes and reverberation.
Thermal insulation
Thermal insulation
KRAFT WoodAcoustic panels are based on wood. Therefore, they perfectly retain heat and improve the thermal inertia of the premises.
Color and design solutions
Color and design solutions
KRAFT WoodAcoustic panels can be painted in any color according to the RAL scale. And every designer will appreciate the ease of use of the material.

Using of Kraft WoodAcoustic panels

Suspended ceilings

01Suspended ceilings

Panels measuring 600x600 mm and 1200x600 mm can be used instead of standard ceiling plates in T-profile ceilings. In this case, the panels are evenly spaced throughout the room and the maximum sound insulation effect is achieved.

Wall cladding

02Wall cladding

For maximum soundproofing of the room, KRAFT WoodAcoustic panels can be placed on the walls. The panels are easily attached to wooden rails or a metal profile.

Acoustic partitions

03Acoustic partitions

Installation of sound-absorbing partitions in an open-plan office can significantly reduce the noise level and create a comfortable working atmosphere.

Acoustic barriers

04Acoustic barriers

In rooms where it is not possible to use a full suspended ceiling, you can use acoustic barriers.

Design solutions

05Design solutions

The material of KRAFT WoodAcoustic panels is easy to process and hand paint. Therefore, with the help of our panels, you can not only create comfort, but also add individuality to any room.

Technical characteristics of Kraft WoodAcoustic panels

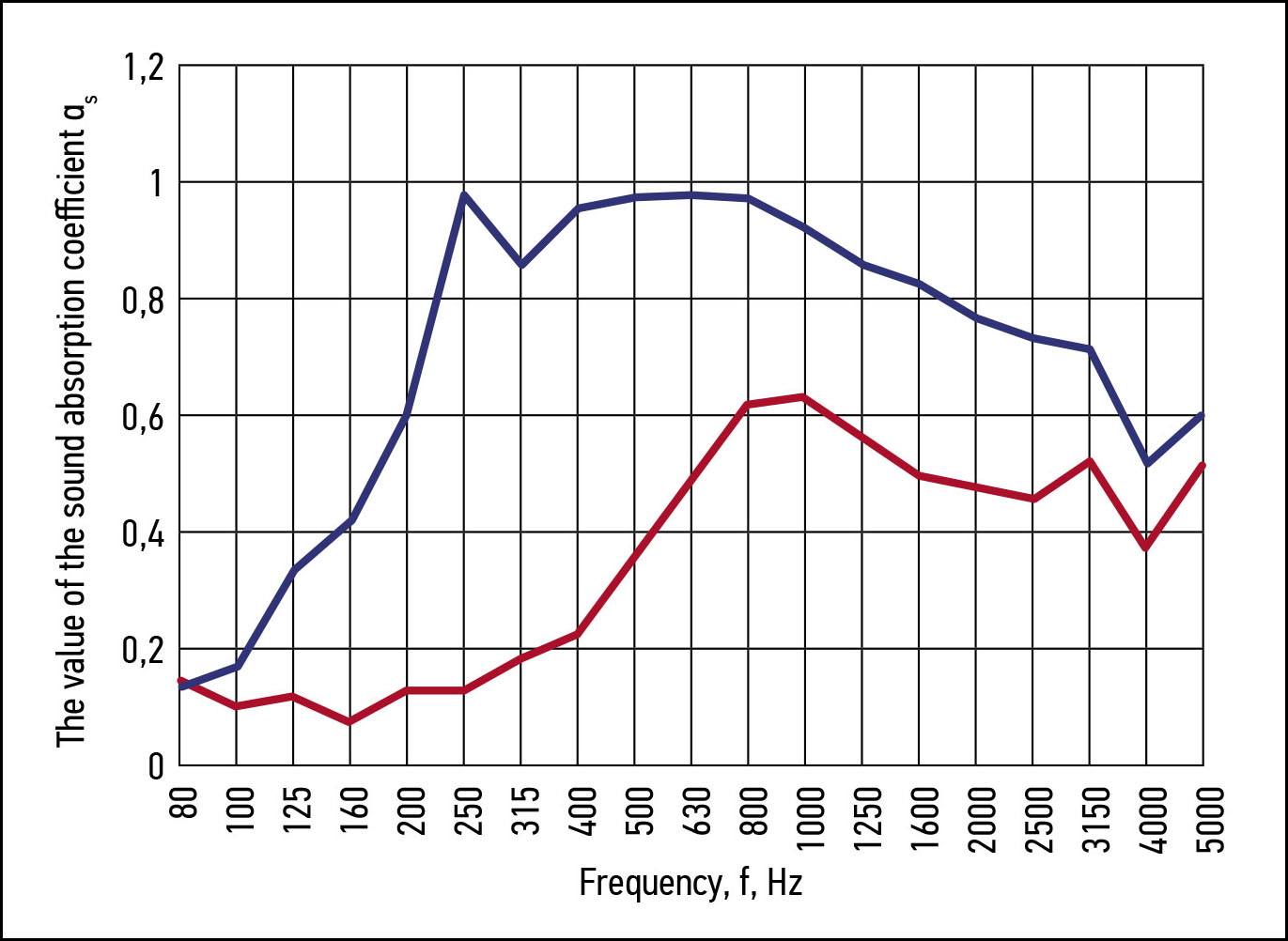

Sound absorption index of KRAFT WoodAcoustic panels:

reverberant sound absorption coefficient without filling the air gap between the panels

reverberation coefficient of sound absorption when filling the air gap between the panels with Isover Premium wool 50 mm

Standard
EN 13168 - EN 13964
Dimensions, mm
600х600, 1200х600
Thickness, mm
11 / 15 / 25
Weight, kg/m2
5,8 / 7,8 / 12,0
Declared thermal conductivity λD, W/m2K
0,075
Light reflection, (%)
50,7–74,0
Fire safety
Euroclass B-s1, d0
Chloride content (%)
≤ 0.06
Release of formaldehyde
class E1
Release of asbestos
does not contain
Types of edges
KR0 (for a thickness of 11, 15 or 25 mm)
KR1 (for a thickness of 11, 15 or 25 mm)
KR2 (for a thickness of 15 mm)

Installation instructions KRAFT WoodAcoustic

Installation instructions for WoodAcoustic panels using glue
Installation instructions WoodAcoustic panels on the frame
