Mesh Cloud panels: main characteristics and installation diagram

Mesh Cloud is an innovative system of mesh panels that offers wide possibilities for interior and exterior design. Thanks to the modular design, these panels can be used as individual elements or combined into large compositions, allowing for unique design solutions.

Flexibility in Use

Mesh Cloud panels are easily installed on various surfaces, making them a versatile solution for:
• Ceilings – as a solid cover or individual suspended islands.
• Walls – creating decorative accents or serving as space dividers.
• Facades – giving the building a modern style and emphasizing its architectural features.
• Partitions – effectively dividing space without losing the sense of openness.
• Railings and fences – used in staircase structures for safety and aesthetics.

Підвісні стелі з плитами KRAFT Mesh T-24 в інтер'єрі

Technical specifications of Mesh Cloud panels

Specification	Mesh Cloud
Frame details	L-shaped frame with "ears"
Support structure	Stud or cable
Standard panel sizes	600×600 mm, 600×1200 mm
Mesh metal thickness	1,0 mm
Coating thickness	60-80 microns
Colors	Any color from the RAL scale
Fire safety class	Euroclass A2-s1, d0 according to EN 13501-1
Acoustic properties	Additional acoustic filling with mineral fiber SOUNDTEX®
Moisture resistance (according to ECCA, EN 1396, ASTM D 2247, HR)	95%
Cell size	16×8 mm, 30×13 mm, 42×14 mm, 60×20 mm

General characteristics of mesh panels

Key Advantages of Mesh Cloud

Modular Design – The ability to combine panels in any configuration.
Easy Installation – Each module is attached individually, making it easy to modify and expand the structure.
Design Flexibility – Mesh panels can be painted in different colors and combined with other materials.
Light Transmission and Ventilation – Ensure good air circulation and a visually light structure.
Strength and Durability – Resistant to mechanical loads and external impacts.

The Mesh Cloud system is the perfect choice for architects and designers looking to create stylish, functional, and unconventional spaces.

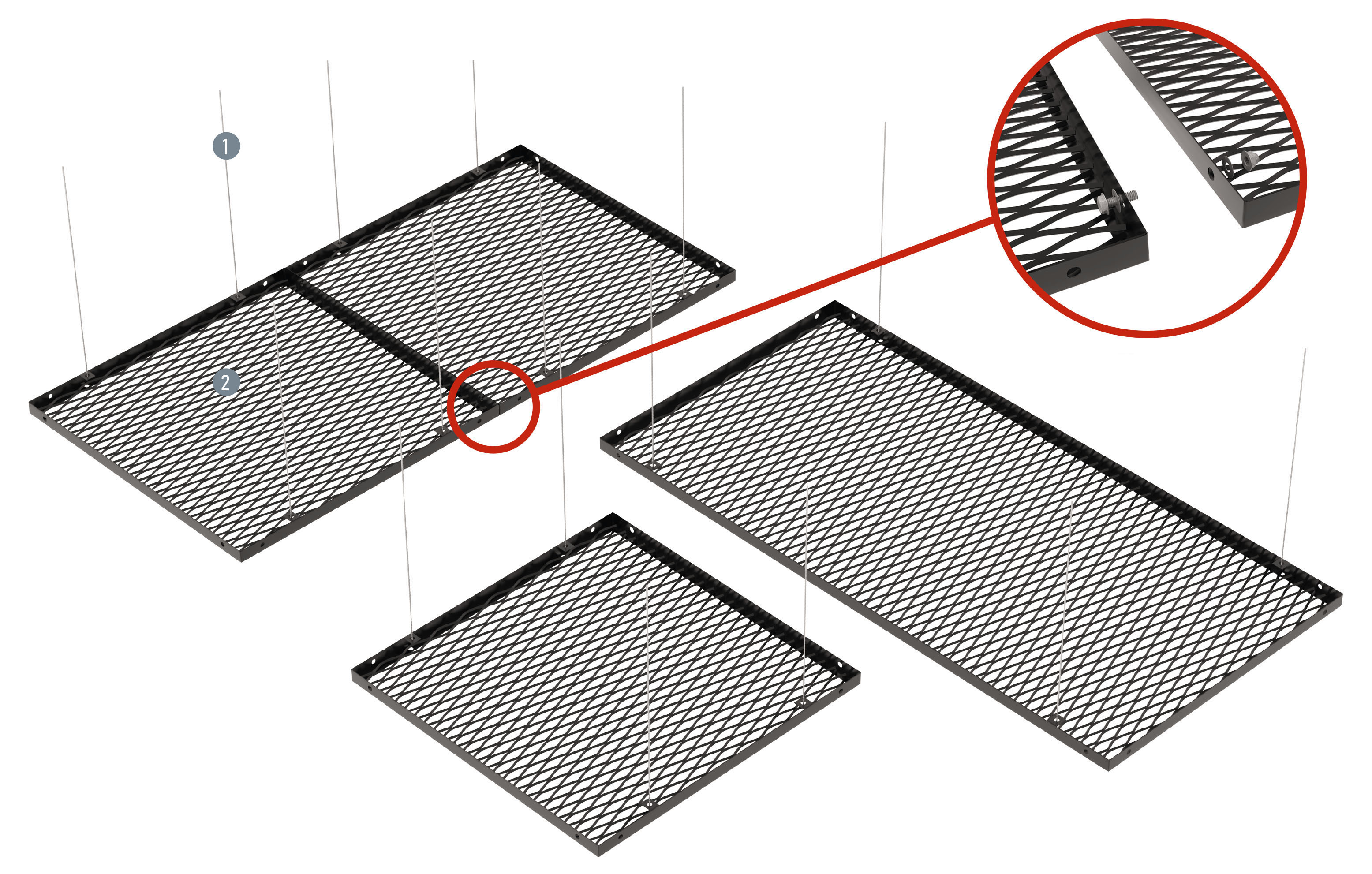

Mesh Cloud panel installation diagram on ceilings

1. Suspension hanger: cable or stud
2. Suspended ceiling panel 600×600 mm

Mesh Cloud panel installation diagram on facades

There are many types of mounting mesh panels on building facades and walls. Each type has its own advantages. Therefore, the final decision on the mounting system is made individually for each project. For more detailed information on mounting types, please contact our specialists.
